Sighture VP100 Endoscope Image Processor: The Core of Clear Vision
The Sighture VP100 is a versatile and portable image processor designed as the central hub for your single-use endoscopy systems. It integrates a medical-grade display with exceptional brightness, delivering real-time, high-definition imaging for procedures across multiple specialties. Engineered with proprietary processing architecture, it ensures low-latency performance and seamless compatibility with your SIGHTURE endoscopes, providing a reliable, all-in-one solution to enhance clinical workflows and diagnostic confidence.
One processor compatible with full endoscope range, standardizing imaging performance across departments.
<67ms system latency ensures immediate response with specialized image enhancement algorithms.
Compact portable design supports flexible use in OR, clinic and bedside applications.
| Category | Specification | |
| Mechanical Performance | Weight | 4.1 kg |
| Dimensions | 360mm × 280mm × 110mm | |
| Display Performance | Screen Size | 12.1 inches |
| Screen Resolution | 1280 × 800 | |
| Screen Brightness | 500 nits (Medical-grade high-brightness display) | |
| Brightness Adjustment | 1-100 levels | |
| Color Adjustment | 1-100 levels | |

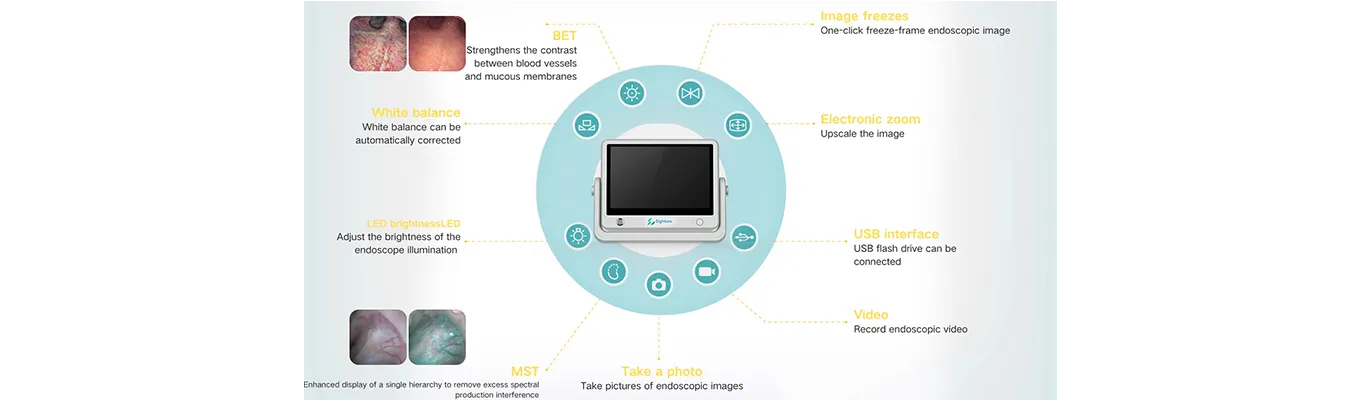

| Processing Performance | System Architecture | FPGA + GPU + ARM heterogeneous processing |
| System Delay | < 67 ms | |
| White Balance | Supported | |
| Outline Enhancement | 0-4 levels adjustable | |
| Freeze Function | Supported | |
| BET | Supported | |
| MST | Supported | |
| Storage Performance | Photo Capture | Supported |
| Video Recording | Supported | |
| Playback | Supported | |
| Interface Parameters | HDMI | 2 ports (supports external medical monitors) |
| USB | 2 ports (supports keyboard/U-disk connection) | |
| Power Interface | 1 port (connects to external power adapter) | |
| Scope Input Port | 1 port (for endoscope connection) | |
Multi-department endoscopy suites
Bedside emergency procedures
Operating room interventions
Outpatient clinic examinations
Mobile medical service units
Upgrade your medical practice with Sighture's cutting-edge Diagnostic & Therapeutic Equipment, including advanced imaging systems, precision laser therapies, and AI-powered diagnostic tools. Our FDA/CE-certified medical devices deliver unmatched accuracy for ophthalmology, dermatology, and rehabilitation applications. Contact us today for tailored solutions that combine innovation with clinical reliability.
