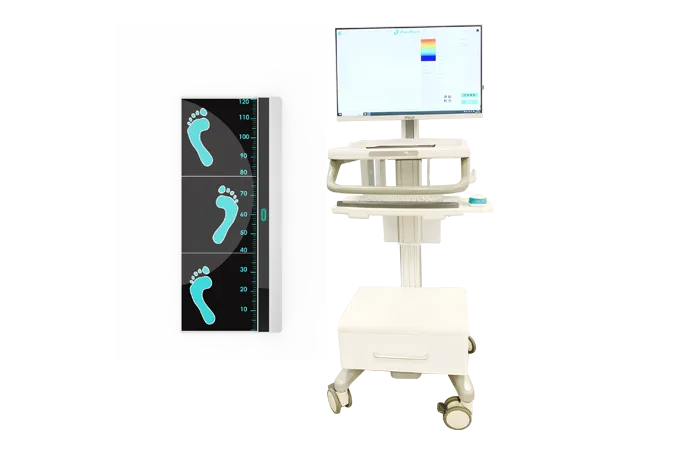

Revolutionizing gait analysis with patented round-trip measurement technology, requiring just 2m × 1m space (70% less than competitors). Captures sub-millimeter step variations at 800Hz via 12,288 sensors. Delivers comprehensive metrics—step symmetry, propulsion force, and joint loading—for early pathology detection in rehab clinics to sports labs.
12,288 sensors detect micro-pressure shifts (>0.1N) during motion—critical for early diabetic neuropathy.

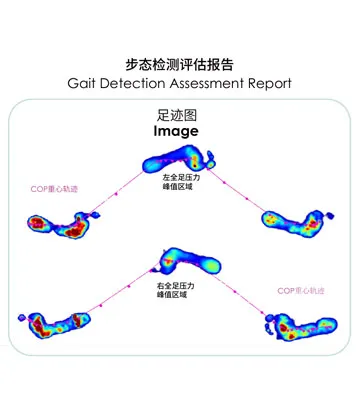

Full gait analysis (symmetry, propulsion, cycle phases) with PDF report generation in 1 minute.

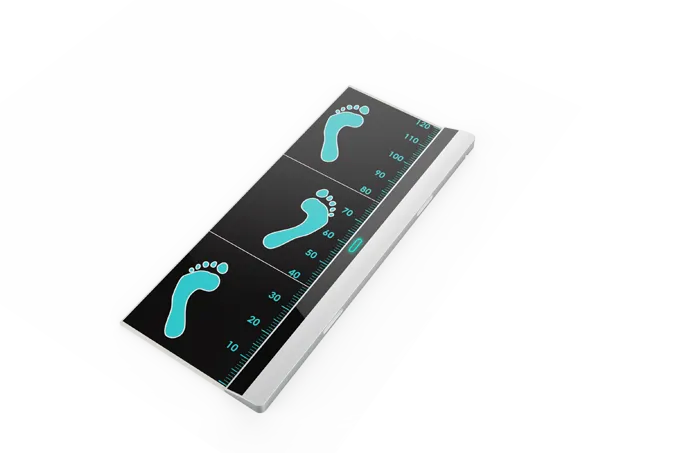

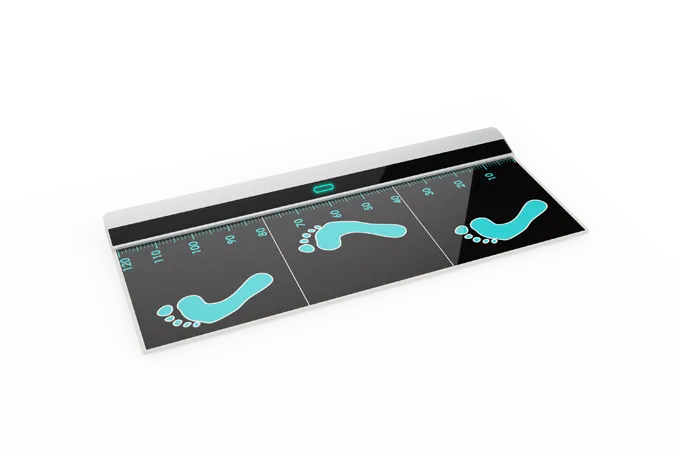

Ultra-thin 3mm platform eliminates tripping risks. Natural walking from floor to sensors, zero gait alteration.
Patented 4-sensors/cm² grid captures true pressure distribution in compact 2m walkways.
| Category | Specification | Details | |||||||
| Platforms | Static Platform (B) | Sizes: 120×54 cm, 160×54 cm, 180×54 cm, 200×54 cm | |||||||
| Universal Platform (C) | Sizes: 50×50 cm, 60×60 cm | ||||||||
| Sensors | Total Sensor Count | ≥12288 (Platform B + C) | |||||||
| Sensor Area | 25 mm² (±5% tolerance) | ||||||||
| Scan Frequency | ≥800 Hz | ||||||||
| Performance | Measurement Range | 10–200 kg | |||||||
| Accuracy | ±2% of full scale (FS) | ||||||||
| Linearity （r) | ≥0.990 | ||||||||
| Force Distribution Precision (RSD) | ≤3% | ||||||||
| Computer | Processor | Intel Core i5-12500H (min.) | |||||||
| Memory | 16 GB RAM (min.) | ||||||||
| Storage | 1 TB HDD/SSD (min.) | ||||||||
| Software | OS Compatibility | Windows 10+ | |||||||
| Report Output | PDF with 13+ metrics (arch index, pressure distribution, contact areas) | ||||||||
| Physical | Operating Temperature | 5°C to 40°C | |||||||
| Relative Humidity | 30%–90% (non-condensing) | ||||||||
| Warranty | Period | 24 months from delivery acceptance | |||||||
Hospital Orthopedics/Rehab: Quick dynamic gait analysis for post-surgery recovery and mobility assessment.
Pediatric/Endocrinology Clinics: Early detection of gait abnormalities in children and diabetic neuropathy screening.
Medical Check-up Centers: Efficient large-scale gait evaluation during routine health examinations.
Nursing Homes: Regular fall risk assessment for elderly residents with low-profile design.
Sports Universities/Clubs: Athletic performance optimization and movement pattern analysis.
Footwear R&D Labs: Biomechanical data collection for shoe design and functional testing.
Prosthetic & Orthotic Centers: Precision fitting validation for artificial limbs and custom insoles.
Disability Support Organizations: Objective mobility assessment for aid distribution and training.
School Screening Programs: Rapid posture and gait screening for student health initiatives.
Hospital Outreach Project: High-throughput community mobility screening events.
