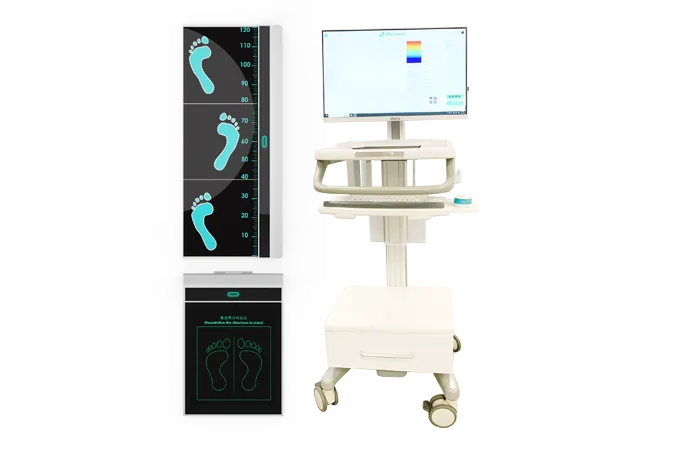

Integrates Gaitnovate-I (static balance) and Gaitnovate-II (dynamic gait) platforms through a single control unit. Operate both systems simultaneously via one interface, eliminating device switching. Perfect for clinics requiring comprehensive assessment without space compromise. Combines high-resolution pressure mapping with temporal-spatial gait analysis for full-profile diagnostics.
Connects Gaitnovate-I (static) and Gaitnovate-II (dynamic) to one computer and software interface. Eliminates separate setups and cuts costs.
Combines real-time balance and gait metrics in a single report—ideal for holistic rehabilitation progress tracking.
Run both tests in the same room without device switching. Maximizes diagnostic capabilities in limited spaces.
Compare static stability and dynamic motion patterns side-by-side for neurological and orthopedic applications.
| Category | Specification | Details | |||||||
| Platforms | Static Platform (A) | Sizes: 40×40 cm, 50×50 cm, 60×60 cm, 75×54 cm | |||||||
| Static Platform (B) | Sizes: 120×54 cm, 160×54 cm, 180×54 cm, 200×54 cm | ||||||||
| Universal Platform (C) | Sizes: 50×50 cm, 60×60 cm | ||||||||
| Sensors | Total Sensor Count | ≥12288 (Platform B + C) | |||||||
| Sensor Area | 25 mm² (±5% tolerance) | ||||||||
| Scan Frequency | ≥800 Hz | ||||||||
| Performance | Measurement Range | 10–200 kg | |||||||
| Accuracy | ±2% of full scale (FS) | ||||||||
| Linearity （r) | ≥0.990 | ||||||||
| Force Distribution Precision (RSD) | ≤3% | ||||||||
| Computer | Processor | Intel Core i5-12500H (min.) | |||||||
| Memory | 16 GB RAM (min.) | ||||||||
| Storage | ≥1TB | ||||||||
| Software | OS Compatibility | Windows 10+ | |||||||
| Report Output | PDF with 26+ metrics (arch index, pressure distribution, contact areas) | ||||||||
| Physical | Operating Temperature | 5°C to 40°C | |||||||
| Relative Humidity | 30%–90% (non-condensing) | ||||||||
| Warranty | Period | 24 months from delivery acceptance | |||||||
Hospital Rehabilitation Departments: Combines static and dynamic assessment for comprehensive post-surgery recovery tracking.
Sports Medicine Clinics: Evaluates athletes' balance and gait patterns in one integrated session.
Orthopedic & Neurological Wards: Supports joint replacement and neuropathy patients with dual-mode data.
Research Laboratories: Enables synchronized static-dynamic biomechanics studies with unified data export.
Geriatric Care Centers: Monitors aging-related mobility decline through balance and walking analysis.
Prosthetic & Orthotic Facilities: Validates custom device performance in both standing and walking conditions.
University Biomechanics Programs: Teaches integrated movement analysis using clinical-grade tools.
Corporate Wellness Programs: Screens employees for musculoskeletal risks with efficient dual testing.
Pediatric Development Centers: Tracks motor skill development with child-friendly protocols.
Endocrinology Departments: Identifies high-risk ulcer zones in diabetic feet through pressure distribution analysis.
